KC30

Load capacity:

200-300kg

Classification:

AGV Series

Slewing mode: double-layer steel ball chute, the chute is lined with 65MN, which has high wear-resistant life and superior features such as easy steering and high load bearing.

Commodity name： KC30
Dead Weight： 200-300kg

E-mail:

china@shinhee.com

Online consultation

Return to List

Description

Slewing method: double-layer steel ball chute, the chute is lined with 65MN, which has high wear-resistant life and superior features such as easy steering and high load bearing.

Stamping surface treatment: corrosion-resistant galvanized treatment.

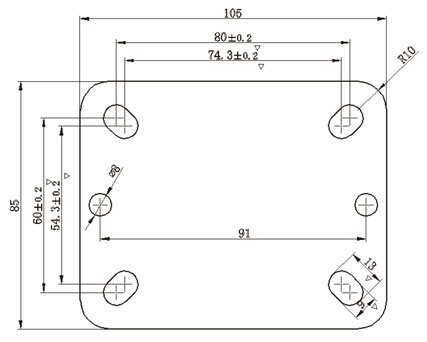

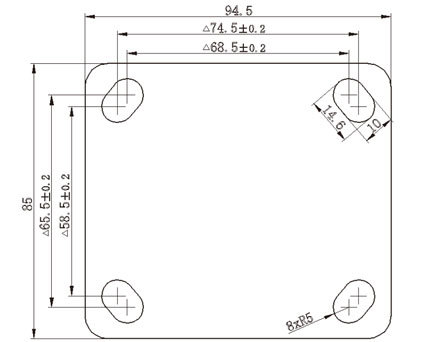

Base plate parameters

详细参数

Wheel Diameter/mm	Wheel Width/mm	Material	Bear	Weights/kg	Wheel Radius/mm	Height of Wheel/mm	Orienting Wheel	Steering Wheel
102	38	PA	BALL	200	98.3	138	KC30PAB4038S01	KC30PAB4038R01
		RA					KC30RAB4038S01	KC30RAB4038R01
127	38	PA	BALL	250	107.5	168	KC30PAB5038S01	KC30PAB5038R01
		RA					KC30RAB5038S01	KC30RAB5038R01
152	38	PA	BALL	300	115	192.5	KC30PAB6038S01	KC30PAB6038R01
		RA					KC30RAB6038S01	KC30RAB6038R01
