AGV Driving Whel

Load capacity:

50-1000kg

Classification:

AGV Series

We have a wide range of polyurethane and rubber material formulations for AGV drive wheels, which meet the requirements of high speed, abrasion resistance, non-marking floor protection, anti-static and other characteristics.

Commodity name： AGV Driving Whel
Dead Weight： 50-1000kg

E-mail:

china@shinhee.com

Online consultation

Return to List

Description

Parameter details

信希塑胶

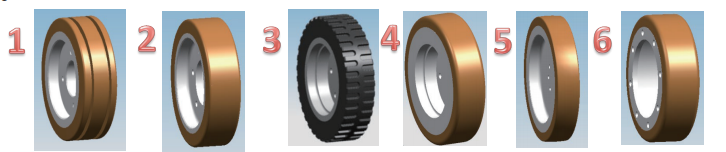

Drawing Number	Material	Wheel hardness (ha)	Wheel Texture（mm）	Diameter Of The Wheel（mm）	Wheel Wdth（mm）	Center Hole（mm）	Mounting hole center diameter（mm）	Number of mounting holes/hole diameter（mm）	Bearer（kg）


1	Aluminum core polyurethane PA	90	Radial straight line	60	20	17	26	4xM3	50
			Radialruled
2	Aluminum core polyurethane PA	90	Flatness	140	40	50	70	6xφ6.5	200
			Flat
3	45# Steel Core Rubber RS	75	Cross-hatched graphic pattern	150	40	无	60	6xφ6.6	200
			Cross-hatched
4	Aluminum core polyurethanePA	90	Flatness	150	40	无	60	6xφ6.6	200
			Flat
5	45# steel core polyurethanePS	95	Flatness	200	35	无	50	7xφ6.6	500
			Flat
6	45# steel core polyurethanePS	90	Flatness	220	70	136	160	8xφ6.6	500
			Flat

信希塑胶

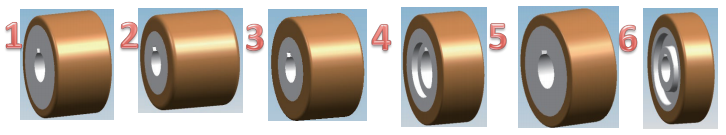

Drawing Number	Material	Wheel hardness (ha)	Wheel Texture（mm）	Diameter Of The Wheel（mm）	Wheel Wdth（mm）	Center Hole（mm）	Mounting hole center diameter（mm）	Number of mounting holes/hole diameter（mm）	Bearer（kg）


1	45# steel core polyurethanePS	90	Flat	85	60	60	6	25	200

2	45# steel core polyurethanePS	90	Flat	90	76	75	8	25	200

3	45# steel core polyurethanePS	90	Flat	85	60	60	8	25	250

4	45# steel core polyurethanePS	90	Flat	160	75	75	16	55	800

5	45# steel core polyurethanePS	90	Flat	160	80	80	16	50	1000

6	45# steel core polyurethanePS	90	Flat	170	55	55	12	40	500
