KC31

Load capacity:

400-600kg

Classification:

AGV Series

Note: The suffix of universal model: “+IS” is the top plate brake, the height is increased by 21mm; “+DT” is the positive brake.

Commodity name： KC31
Dead Weight： 400-600kg

E-mail:

china@shinhee.com

Online consultation

Return to List

Description

Slewing mode: double bead plate design, bead plate and bracket using heat treatment process, so that the overall strength of the caster has a greater enhancement, the bracket is a stretch molding, not only increase the strength, but also make the rotation more flexible.

The rear double brakes are safe and stable.

Stamping surface treatment: corrosion-resistant galvanized treatment.

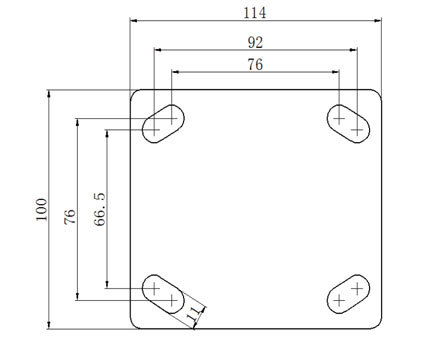

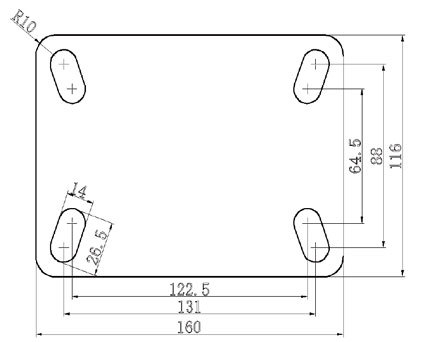

Base plate parameters

Detailed parameters

Wheel Diameter/mm	Wheel Width/mm	Material	Bear	Weights/kg	Wheel Radius/mm	Height of Wheel/mm	Orienting Wheel	Steering Wheel
76.2	50.8	SX	BALL	400	82.5	120.7	KC31SXB3050S01	KC31SXB3050R01
		UD					KC31UDB3050S01	KC31UDB3050R01
101.6	50.8	SX	BALL	500	92.1	140.9	KC31SXB4050S01	KC31SXB4050R01
		UD					KC31UDB4050S01	KC31UDB4050R01
127	50.8	SX	BALL	550	108	167.9	KC31SXB5050S01	KC31SXB5050R01
		UD					KC31UDB5050S01	KC31UDB5050R01
152	50.8	SX	BALL	600	117.3	193	KC31SXB6050S01	KC31SXB6050R01
		UD					KC31UDB6050S01	KC31UDB6050R01
203	50.8	SX	BALL	600	146	245.5	KC31SXB8050S01	KC31SXB8050R01
		UD					KC31UDB8050S01	KC31UDB8050R01
